Hierarchical Bits — Visual Pitch (comparative charts)

A structure that represents a heterogeneous asset, navigates parts of it without loading everything, and delegates each region to the best specialist format.

0. The model, in one picture

The distinctive property (FCIR) in a single diagram: rival interpretations co-registered over one immutable substrate, with adjudication deferred to a read-time, optional choice.

The charts below measure the substrate-sharing economics — real, but (the sweep found) already mature SOTA. The diagram above is the part that distinguishes BH; treat the charts as supporting evidence, not the headline.

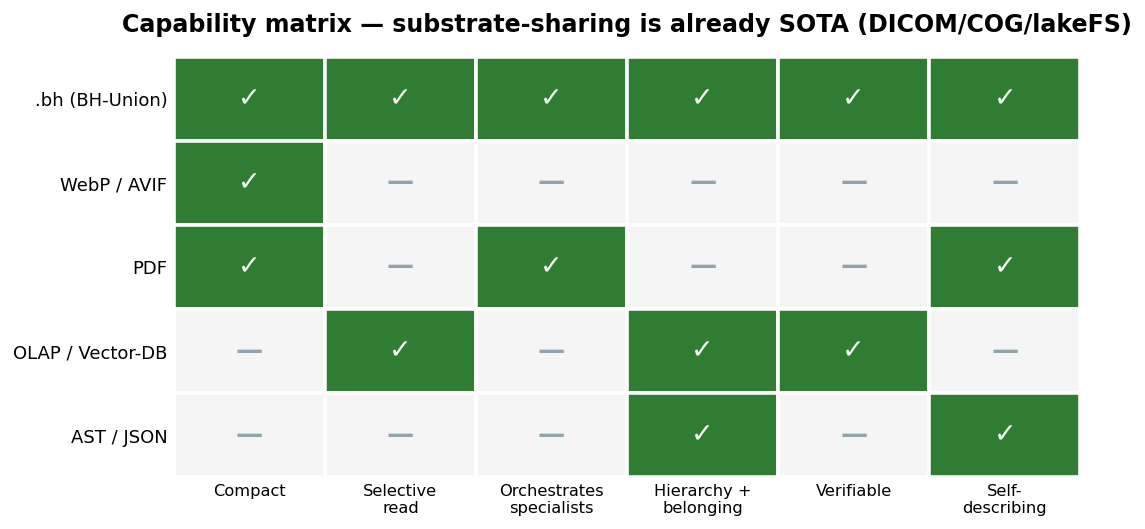

1. Capability matrix — substrate-sharing (already SOTA)

Every format today covers only one piece. .bh is the only one that unites all the capabilities in a single structure.

WebP/AVIF  → compact, but single reading, no orchestration nor hierarchy
PDF        → orchestrates and is self-describing, but a flat list, no selective read
OLAP/V-DB  → selective reading and hierarchy, but not a representation format
AST/JSON   → explicit structure, but not compact and doesn't orchestrate
.bh        → ALL capabilities, in one envelope

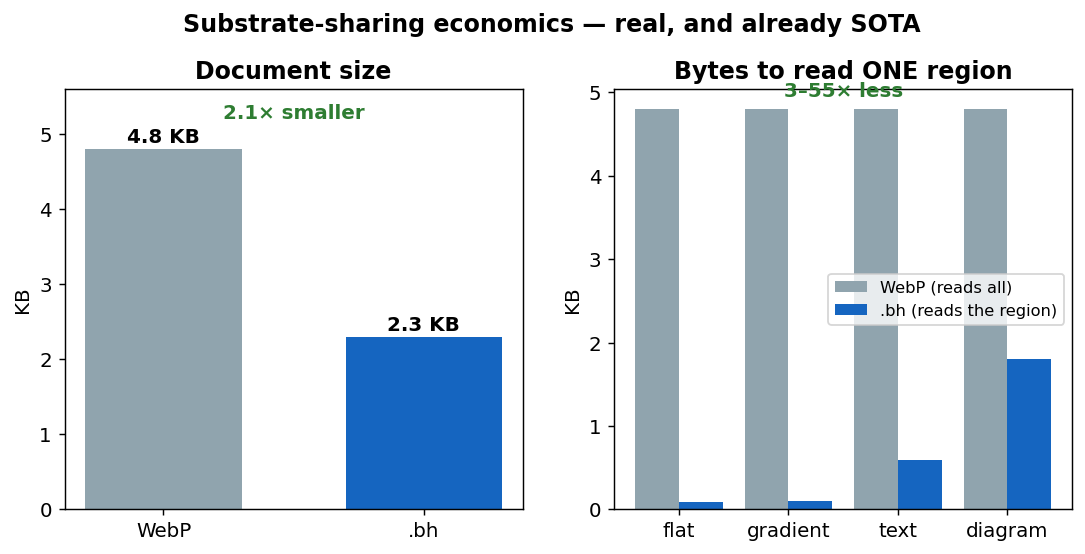

2. Substrate-sharing economics — real, and already SOTA

The substrate-sharing economics are real — measured against WebP on a structured document — but the sweep found this pattern is already mature SOTA (DICOM, COG, lakeFS, CRAM…). It is not where BH differs; it is supporting evidence, not the headline.

• 2.1× smaller than WebP (each region in the format that suits it).
• 3–55× fewer bytes to read any region — WebP decodes the entire file for any piece; .bh reads only the requested branch. (Selective read — the already-SOTA part, not the differentiator.)

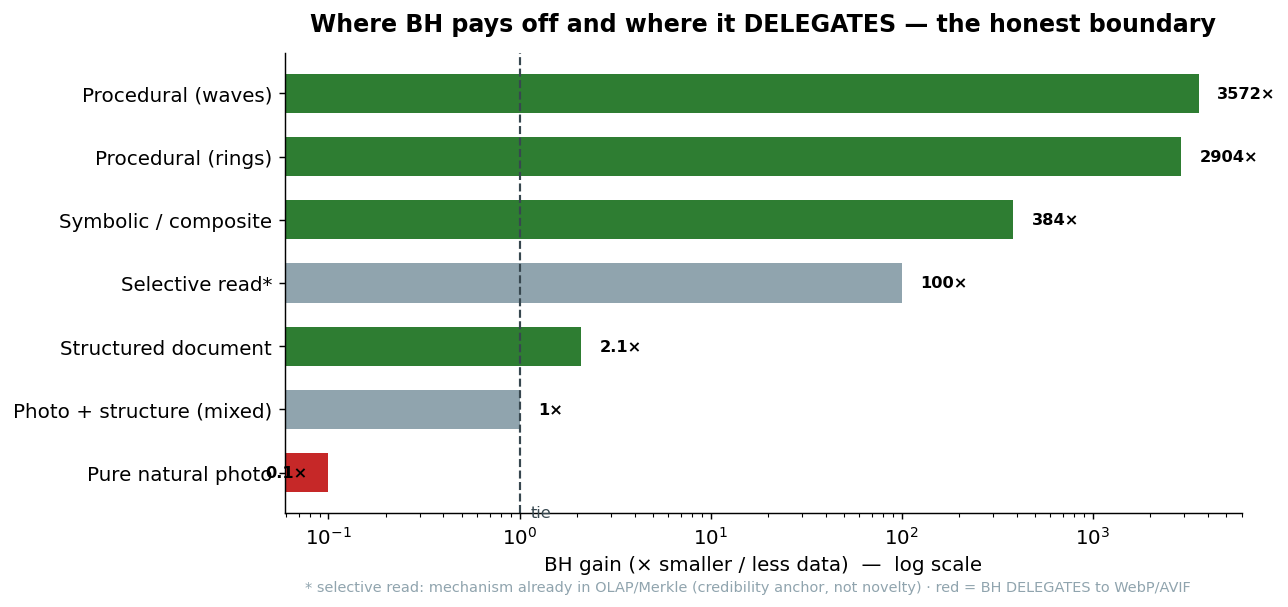

3. Where it pays off and where it delegates (the honest boundary)

BH is not universal magic. It pays off where the data is structure and delegates where it's dense signal.

STRUCTURE (wins)          Procedural 2,904–3,572× · Symbolic 384× ·
                          Document 2.1×
SELECTIVE READ (anchor)   ~100×, but a mechanism that already exists (OLAP/Merkle):
                          credibility, not novelty
DENSE SIGNAL (delegates)  Natural photo: WebP/AVIF wins — BH calls it,
                          doesn't compete

The boundary is not the signal's entropy — it's structure recognition.

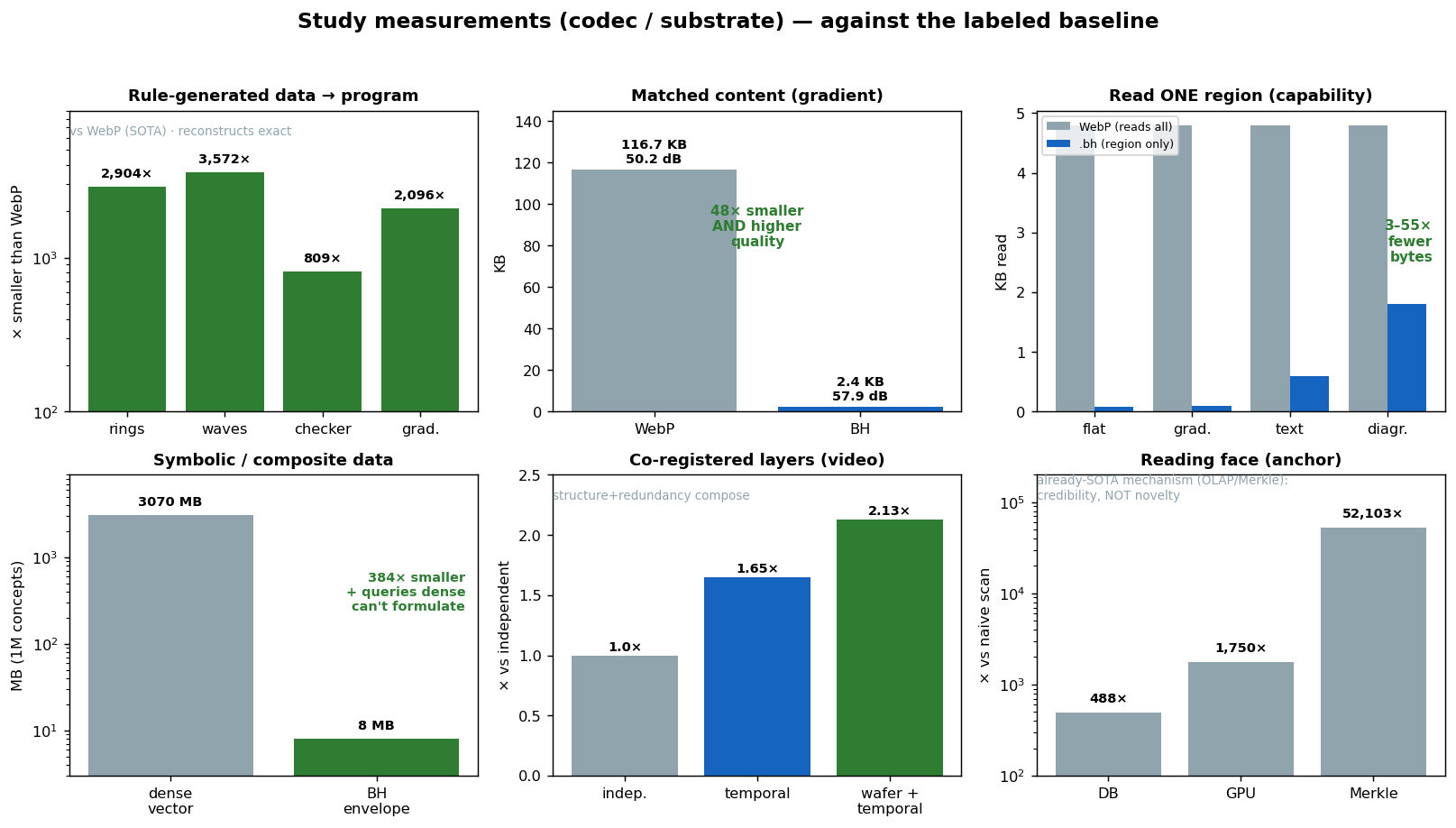

4. The measurements, one by one (where BH was superior, and against what)

Each real test, with the gain and the baseline labeled — visible honesty: green where it wins vs state of the art, gray where it's an anchor (already-SOTA mechanism).

Rule-generated data → program .... 800–3,572× smaller than WebP (reconstructs exact)
Matched content (gradient) ....... 48× smaller than WebP, with HIGHER quality
Reading one region (capability) .. 3–55× fewer bytes than WebP
Symbolic / composite data ........ 384× smaller + queries dense can't even formulate
Co-registered layers (video) ..... 2.13× (structure + redundancy compose)
Reading face (anchor) ............ 488–52,103× vs naive — but it's OLAP/Merkle,
                                   credibility, NOT novelty

The three charts read together

1. Chart 1 shows WHAT: a structure that does what today takes four.
2. Chart 2 shows the PROOF: smaller AND navigable, in the same file, vs SOTA.
3. Chart 3 shows the HONESTY: where it pays off (structure) and where it delegates (signal) — the credibility that makes an engineer trust it.

The value isn't in the compressed block. It's in the structure that knows what that block means.

Charts generated by pitch_assets/generate_charts.py and generate_evidence.py from the study's real measurements (see BH_MASTER.md). PNGs in pitch_assets/en/.
